iStream ITX
7 industriesNetris iStream ITX is a complete software NVR-solution for single objects with few IP-cameras. It is aimed at arranging video surveillance at single objects with possibility to transmit videostreams and access to object camera archives through Netris complex platform.
Netris iStream ITX allows adding cameras and users, manage the rights, watching real-time video streams from cameras (including mosaic mode for several streams sinultaneous watch) and archive video recording with adjustable record depth.
There is an optional PTZ driver installation opportunity, that can perform remote camera control and external systems additional integration possibility.
Additionally, external systems integration is possible - including analytical systems for face, situation and vehicle recognition.
In case of large amount of cameras several video registrators can be connected into a united system.
Suitable for
Features and benefits
Cost-effective solution for single objects
A perfect CCTV-solution for government and municipal objects, that demands cameras access through the united city or region CCTV platform
- Netris CCTV platform integration CCTV video streams and archive videos can be watched through the united city or region Netris platform
- Non-demanding hardware requirements Completely software solution that can be installed at any computer or server meeting minimum system requirements
- Local recording and storage Video steams don't need to be transmitted to data storage and processing center as there is on-demand access to live and archive videos
- User-friendly interface The object staff have separate interface containing all functions required for object CCTV
- Users authorization and rights management system Flexible user rights management based on role model, with the possibility to restrict access to cameras, archives and certain functions
- Flexible licensing 5 licence types: for 8, 16,32,48 and 64 cameras
Netris iStream ITX is included into Russian electronic software index.
Interface screenshots

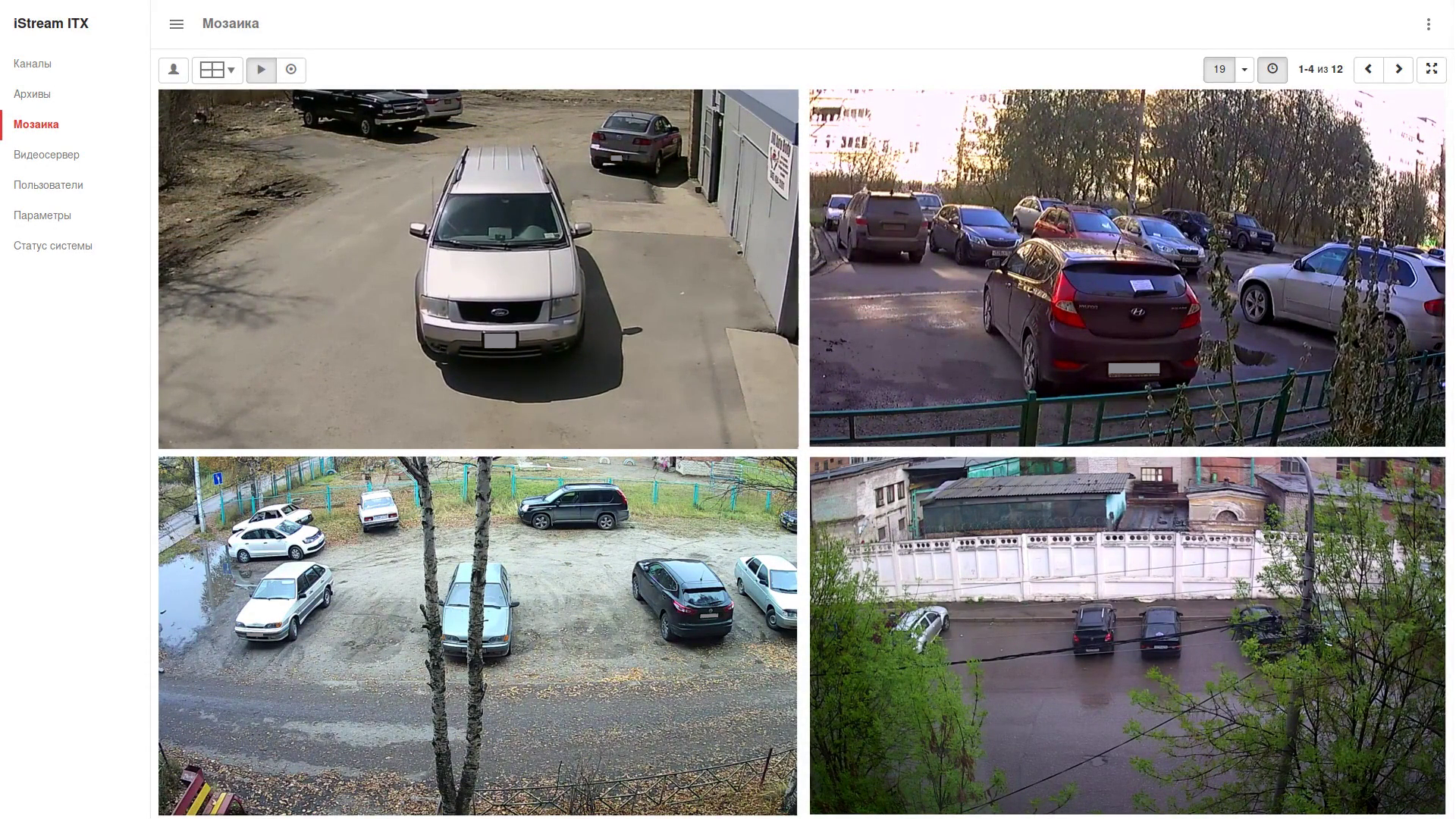

Netris iStrem ITX interface, mosaic mode: 4 cameras

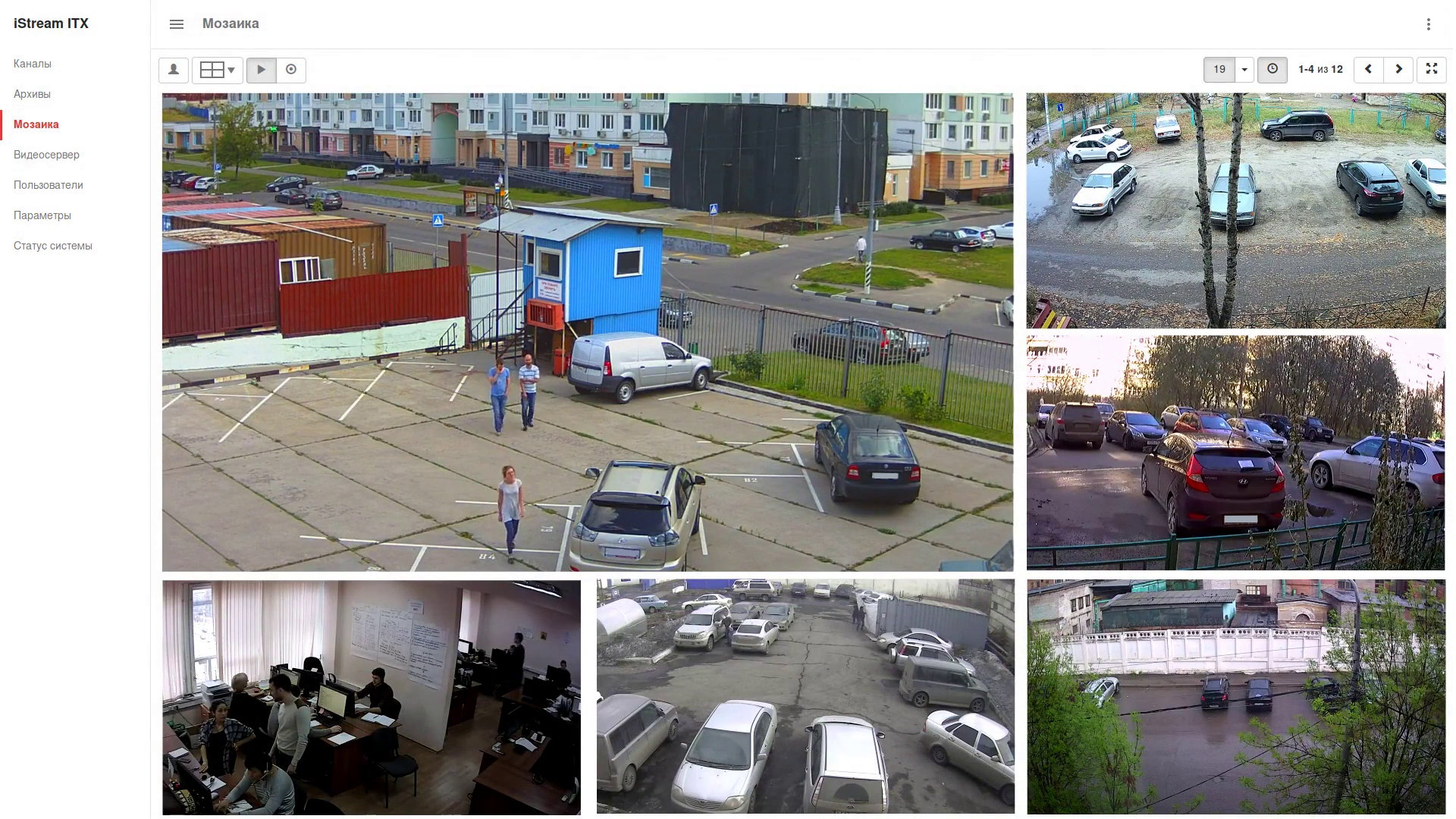

Netris iStrem ITX interface, mosaic mode: 9 cameras
Video archive in synchronous mode
List of analytics events
Plug-in types of video analytics
Transport vehicle monitoring screen
Netris iStream ITX is a complete software solution that can be installed at any computer or server meeting minimum system requirements.
| Cabinet | mini-ITX or more |
|---|---|
| Motherboard | mini-ITX or more |
| CPU (8-16 cameras) | Intel® Core i3-12100, 4 cores |
| CPU (32-64 cameras) | Intel® Core™ i5-12600, 6 cores |
| Memory (8-16 cameras) | 8 GB, DDR4/DDR5, SO-DIMM |
| Memory (32-64 cameras) | 16 GB, DDR4/DDR5, SO-DIMM |
| Operating system | Ubuntu Desktop 22.04 or РЕД ОС 7.3 |
| HDD 3.5" | It is calculated based on the number of cameras and the depth of the archive. The average stream is 4 Mbps. |
The world largest CCTV project: over 250 000 cameras integrated into single platform. It has been actively developing on the Netris platform basis since 2013.
One of the largest CCTV projects in Russia: over 73 000 cameras integrated into single platform. It has been developing on the Netris platform basis since 2014 until now.
Regional intellectual CCTV system that includes over 5000 cameras in various cities of the region. The project has been developing since 2015.
